QT8-15 Automatic Concrete Block Machine

QT8-15 hydraulic concrete block making machine 1

QT8-15 hydraulic concrete block making machine 2

QT8-15 is a middle-large sized automatic hydraulic concrete block production line. The total production line only need two workers. It can achieve the production capacity 19200 pieces 400*150*200mm hollow block per eight hours. Different sizes and shapes concrete hollow block, concrete solid block, colored paving block and curbstone can be produced by changing the moulds.

Product Video

Video Content

This is an automatic hydraulic block production line. The full production line is composed of batching machine, cement silo, Screw conveyor, cement scale, double-horizontal-shaft concrete mixer, conveyor belt, automatic pallet feeding machine, block machine, automatic stacker.

In the video, we explore a concrete block factory together. We can see the real working status of the concrete block production line in the video.

Product Details：

Raw material: QT8-15 takes cement, sand, flyash, rubble, slag, stone dust, coal gangue, volcanic ash, construction waste, water as raw material. You can choose the combination on base of the available raw material at your local area.
Function: QT8-15 is designed to produce concrete hollow block, concrete solid block, colored paving block and curbstone. One set block machine can produce different shpaes block by channging the molds. And we also accept block size customization.

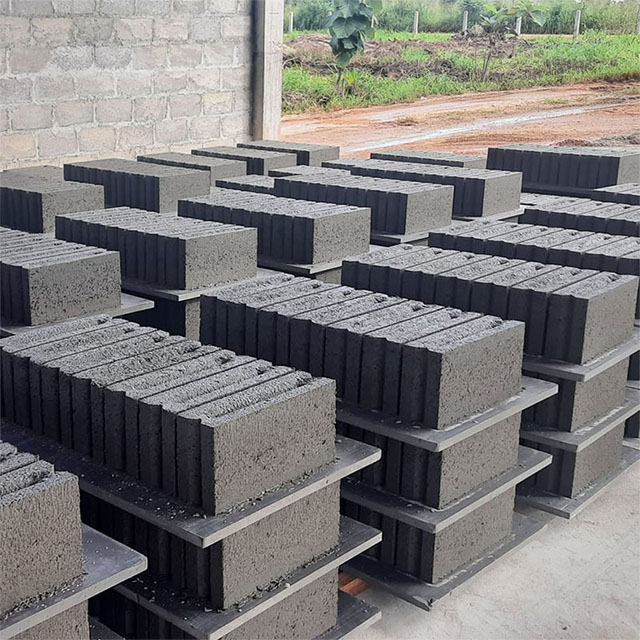

Production capacity: This concrete block machine can produce about 19200 pieces 400*150*200mm block in eight hours.
Personnel requirement: The block production process as following, mixing raw material, feeding raw material, feeding pallets, pressing blocks and moving the blocks to curing area. 2 worker will be needed to produce the blocks (one person operate the machine and one person transport the blocks to curing area).
Automation level: QT8-15 is an automatic concrete block production line.
Moulding technology：QT8-15 adopts hydraulic + vibration moulding technology. We can get the best quality blocks under the combination of hydraulic moulding technology and vibration technology.
Power source: QT8-15 is powered by electric motor.
Components of the full production line: Batching machine, cement silo, concrete mixer, automatic pallets feeding machine, conveyor belt, block machine, stacker and integrated control system.
Other features: QT8-15 can be equipped with integrated control system. One person can control all machines including batching machine, cement silo, concrete mixer, automatic pallets feeding machine, conveyor belt, block machine, stacker under the integrated control system.
Who can purchase this model? This block machine is suitable for the entrepreneurs. They can open a large sized block factory.

Technical Parameters：

Dimension of host machine	530017002700 mm
Power of host machine	44.2 Kw
Weight of host machine	8.5 Tons
Vibration force	80-100KN
Pallet size	960*850 mm
Mixer model	JS750
Workshop	260 ㎡
Molding cycle	12-20S
