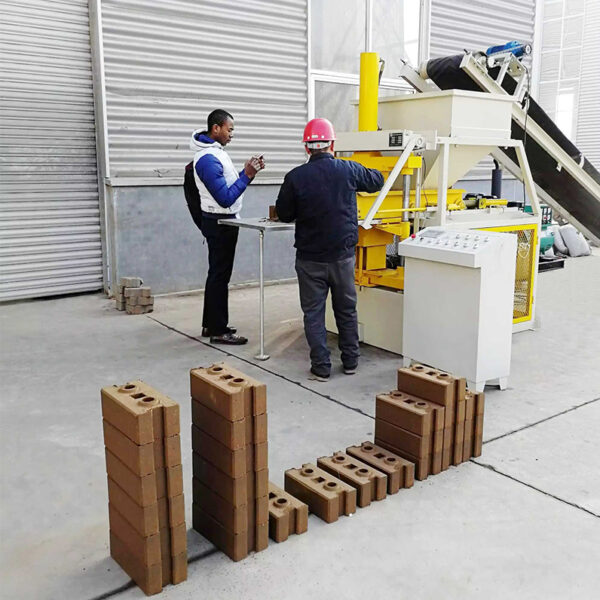

ZC2-10 Automatic Interlocking Brick production line

ZC2-10 is a small sized full automatic interlocking soil brick production line. It takes soil and cement as raw material. Different shapes brick can be produced by only changing the brick moulds.

Product Video

Video Content

  • Function
  • Moulding Technology
  • Operation Display

Product Details:

  1. Raw material: ZC2-10takes soil or soil +cement as raw material. The raw material ratio is depended by the ingredient of the soil and your quality requirements.
  2. Function: ZC2-10 is designed to produce interlocking soil bricks and paving blocks. It can produce different shpaes brick by channging the molds. And we also accept brick size customization.
  3. Production capacity: The standard brick size is 300*150*100mm (L*W*H). A skilled worker can produce about 5760 pieces brick in eight hours.
  4. Personnel requirement: The brick production process as following, crush soil, sieve soil, mixing raw material, feeding raw material, pressing bricks, moving bricks to curing area. 5 worker will be enough for the produce of the bricks.
  5. Automation level: ZC2-10 is a full automatic brick mache. The bricks can be taken shape by pressing the start button.
  6. Moulding technology:ZC2-10 adops hydraulic moulding technology which can enhance the strength of the bricks.
  7. Power source: ZC2-10 brick production line is powered by electric motor.
  8. Other features: ZC2-10 combine the advantages of high automation level and low investment cost.  This is the smallest full automatic interlocking brick production line.
  9. Who can purchase this model? This small sized machine is suitable for opening a middle sized brick factory. It is a good choice for an entrepreneur.

Technical Parameters:

Automation LevelFull automatic
Hydraulic Pressure20 Tons
Host Machine Power7.5 Kw
VoltageCustom Made
Hydraulic Cylinder Quantity3
Shaping Cycle15S
Host Machine Weight1.3 Tons

The Common Interlocking Bricks
