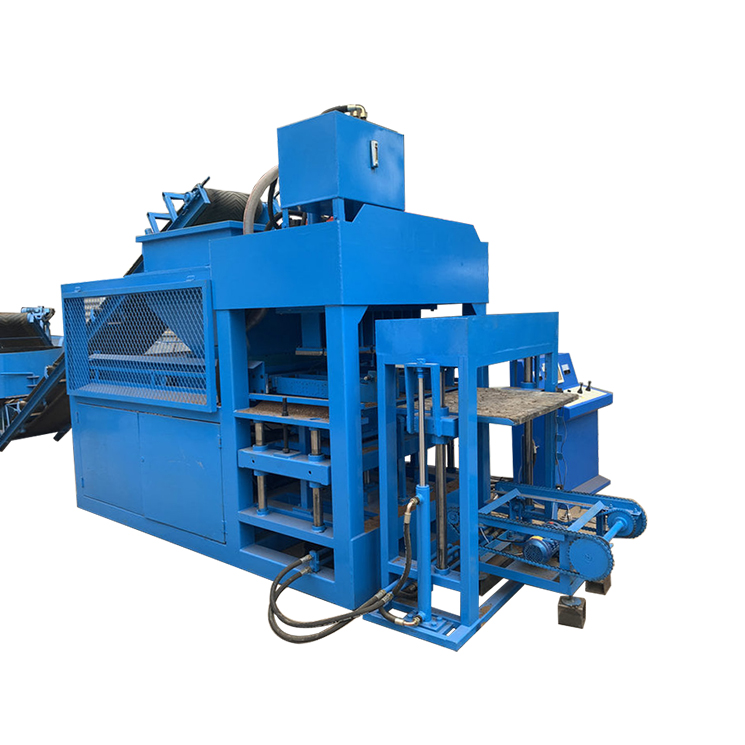

ZC10-10 Automatic Interlocking Brick Making Machine
ZC10-10 Automatic Interlocking Brick Making Machine - Image 2
ZC10-10 Automatic Interlocking Brick Making Machine - Image 3
ZC10-10 Automatic Interlocking Brick Making Machine - Image 4

ZC10-10 Automatic Interlocking Brick Making Machine

Category Tags , , ,

Sandy loam is difficult to take shape. However, ZC10-10 solve this difficult problem because of its high pressure. No matter which kind of soil taken as raw material, you can get strong bricks using ZC10-10 hydraulic brick machine.

ASK FOR A QUOTE

Product Video

Video Content

  • Function
  • Major Components
  • Moulding Technology
  • Operation Display

Product Details：

  1. Raw material: ZC10-10takes soil or soil +cement as raw material. The raw material ratio is depended by the ingredient of the soil and your quality requirements.
  2. Function: ZC10-10 is designed to produce interlocking soil bricks and paving blocks. It can produce different shpaes brick by channging the molds. And we also accept brick size customization.
  3. Production capacity: The standard brick size is 300*150*100mm (L*W*H). A skilled worker can produce about 19200 pieces brick in eight hours.
  4. Personnel requirement: The brick production process as following, crush soil, sieve soil, mixing raw material, feeding raw material, pressing bricks, moving bricks to curing area. 5 worker will be enough for the produce of the bricks.
  5. Automation level: ZC10-10 is a full automatic brick mache. The bricks can be taken shape by pressing the start button.
  6. Moulding technology：ZC10-10 adops hydraulic moulding technology which can enhance the strength of the bricks.
  7. Power source: ZC10-10 brick production line is powered by electric motor.
  8. Other features: ZC10-10 is an full automatic brick production with high pressure. The hydraulic pressure can achieve 100 tons or 200 tons. Two aspects factor determine the choice of the hydraulic pressure. The fist factor is the quality of the raw material. The second factor is your requirement for the strength of the bricks.
  9. Who can purchase this model? This small sized machine is suitable for opening a middle-large sized brick factory. It is a good choice for an entrepreneur.

Technical Parameters：

Automation LevelFull Automatic
Hydraulic Pressure300/200/100 Tons
Host Machine Power22 Kw
VoltageCustom Made
Hydraulic Cylinder Quantity5
Shaping Cycle12 S
Host Machine Weight4.5 tons

The Common Interlocking Bricks
