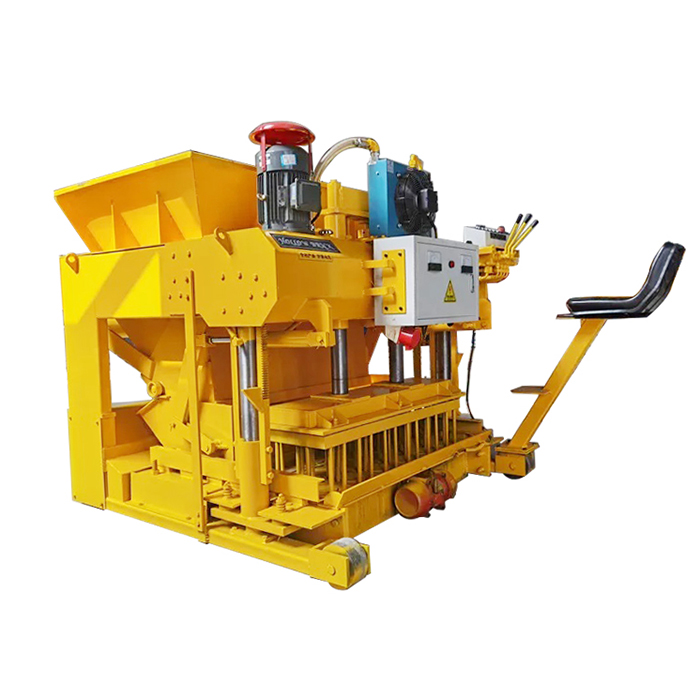

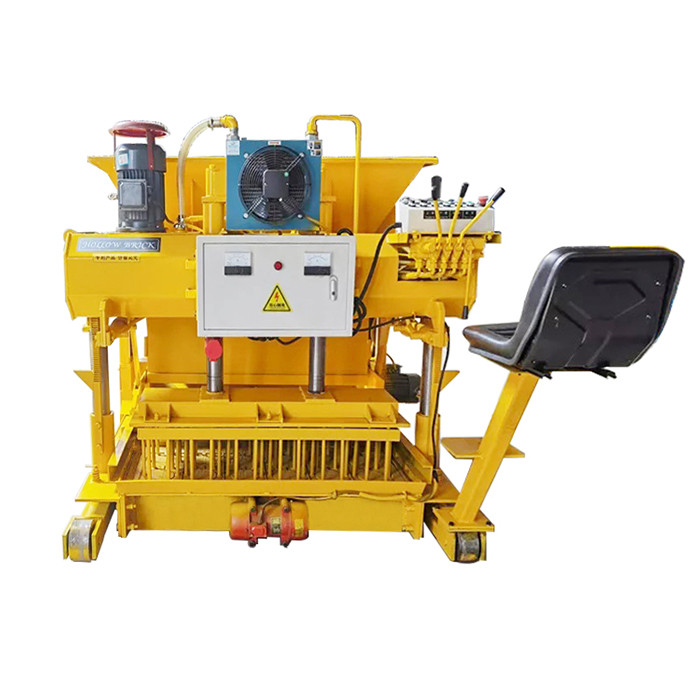

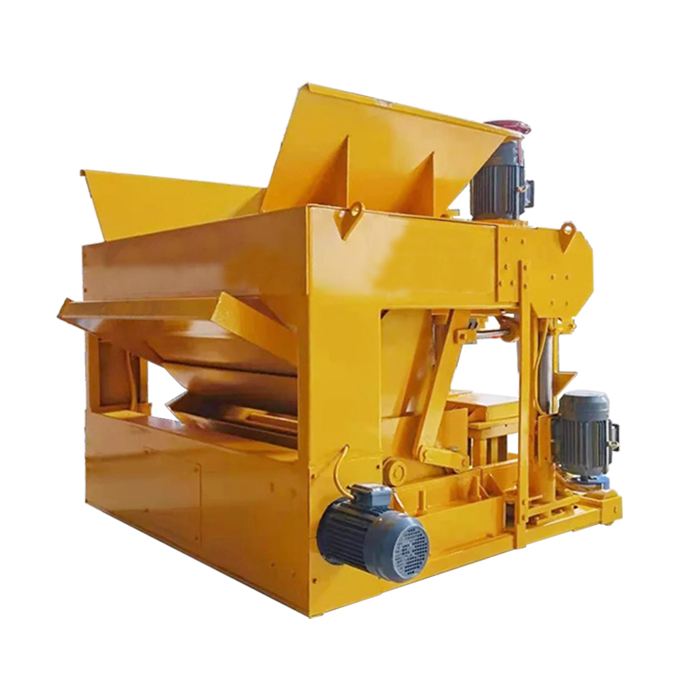

QMC6-25 Egg Layer Concrete Block Machine
QMC6-25 Egg Layer Concrete Block Machine - Image 2
QMC6-25 Egg Layer Concrete Block Machine - Image 3
QMC6-25 Egg Layer Concrete Block Machine - Image 4

QMC6-25 Egg Layer Concrete Block Machine

Category Tags , , , , ,

ZCM6-25 is a middle sized egg laying concrete block making machine. It can lay the concrete blocks on the floor directly. It produce about 6720 pieces 400*150*200mm block in eight hours. If you have sufficient land, this concrete block machine will be a ideal choice.

ASK FOR A QUOTE

Product Video

Video Content

  • Function
  • Power Requirement
  • Operation Display
  • Supporting Equipment

Product Details：

  1. Raw material: QMC6-25 takes cement, sand, flyash, rubble, slag, stone powder, volcanic ash, water as raw material. You can choose the combination on base of the available raw material at your local area.
  2. Function: QMC6-25 is designed to produce concrete hollow block and concrete solid block. One set block machine can produce different shapes block by changing the molds. And we also accept block size customization.
  3. Production capacity: This concrete block machine can produce about 7,680 pieces 400*150*200mm block in eight hours.
  4. Personnel requirement: The block production process as following, mixing raw material, feeding raw material, pressing bricks. 3 worker will be enough for the production of the blocks. In order to reduced need for staff and enhance the production capacity, batching machine, cement silo, concrete mixer, wheel loader and block clapping machine will be needed.
  5. Automation level: QMC6-25 is an automatic block machine.
  6. Moulding technology: QMC6-25 adopt hydraulic + vibration moulding technology. We can get the best quality blocks under the combination of hydraulic moulding technology and vibration technology.
  7. Power source: QMC6-25 is powered by electric motor.

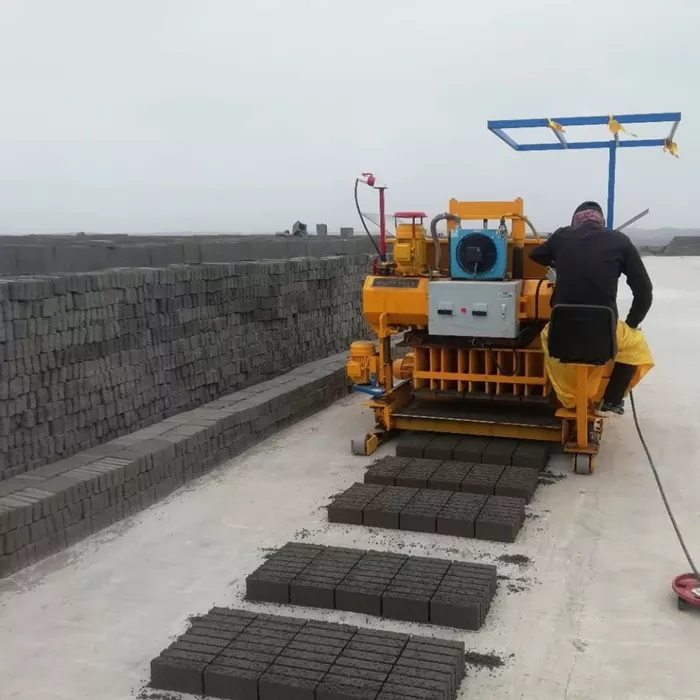

  8. Other features: QMC6-25 is movable concrete block machine. It only needs some concrete floor to laying the blocks. You don’t need to prepare pallets. That will save investment cost.
  9. Who can purchase this model? This large sized machine is suitable for entrepreneur. They can open a middle sized block factory to sell concrete blocks.

Technical Parameters：

Dimension of host machine2000*1800*1600 mm
Power of host machine12.2 Kw
Weight of host machine2300 Kgs
Mixer modelJZC350
Molding cycle30-35S

The Common Concrete Blocks
